Architectural Drawing Basics Made Simple

Ever stop and wonder how a massive, complex building gets built from just an idea? The magic happens with architectural drawings. They're the universal language of construction, the critical step that translates a creative spark into something real and buildable.

Think of them less like scary technical documents and more like the story of a building, told with lines, symbols, and a whole lot of precision.

From Vision to Blueprint: Your Guide to Architectural Drawings

Here at SEGC, we've found that when our clients get the basics, it builds a foundation of trust that makes the entire project run smoother. For over 21 years, we've been turning visions into legacies across Fayetteville and Lumberton using clear, meticulous drawings as our guide. As a Native American-owned, 8(a), and HUBZone certified firm, we're not just building structures; we're building our community with proven results and local leadership.

An architect reviewing a set of architectural drawings at a desk

So, what is an architectural drawing, really? It's much more than just a picture. It's the detailed instruction manual that communicates every single part of a design to the people who will actually build it. It’s the one thing that ensures the finished building looks exactly like what everyone agreed on.

At its core, an architectural drawing is a promise. It’s our promise to a client that we understand their vision and have a clear, actionable plan to bring it to life with precision and care.

This guide is designed to pull back the curtain on these essential documents. We’ll walk through the main types of drawings, the symbols you’ll see, and how to make sense of scales, giving you the confidence to read a blueprint like you’ve been doing it for years. Helping our clients feel empowered is just one of the ways we build great projects and even better relationships.

The Big Three: Plans, Elevations, and Sections

Ever tried to describe a coffee mug to someone who's never seen one? You’d probably show them the top (the plan), the side (the elevation), and maybe what it looks like cut in half to show how thick the ceramic is (the section). Architectural drawings use that very same logic to squeeze a whole building onto a flat piece of paper.

These three views aren't just optional; they're the essential trio that tells the full story of a structure. Trying to build with just one or two of them would be like trying to assemble furniture with half the instructions missing—a recipe for confusion and expensive mistakes. Here at SEGC, we’ve been speaking this language fluently for over 21 years in Fayetteville, and it’s a huge part of how we deliver quality with every project.

Breaking Down Each Perspective

First up is the plan. This is the one most people recognize. It’s a bird’s-eye view, as if you’ve lifted the roof off a house and are looking straight down. This is where you see the layout of rooms, where the doors and windows go, and how you get from the kitchen to the living room. It's all about the horizontal flow.

Next is the elevation. This is what the building looks like from the outside, standing on the street. You’ll have a front elevation, a rear one, and one for each side. This view is all about appearances—it shows exterior finishes like brick or siding, window styles, and the overall height and shape of the building.

Finally, we have the section. Imagine taking a giant knife and slicing the building right down the middle. A section drawing shows you what the inside of that cut looks like. It’s how you see the real guts of the building: ceiling heights, how the floors connect, and the nitty-gritty construction of the walls, foundation, and roof. It’s an x-ray view of the building's bones.

To make this crystal clear, let's break down the role of each drawing in a simple table.

The Core Three Architectural Views Explained

Drawing Type Perspective What It Shows
Plan Top-Down (Bird's-Eye View) Room layouts, dimensions, door/window locations, and spatial flow.
Elevation Face-On (Exterior View) Exterior materials, building heights, and the facade's appearance.
Section Cut-Through (Cross-Section) Internal construction, ceiling heights, and how different levels connect.

See how they fit together? Each one provides a piece of the puzzle that the others can't.

The infographic below gives a great visual of how these distinct views come together to create a complete architectural narrative.

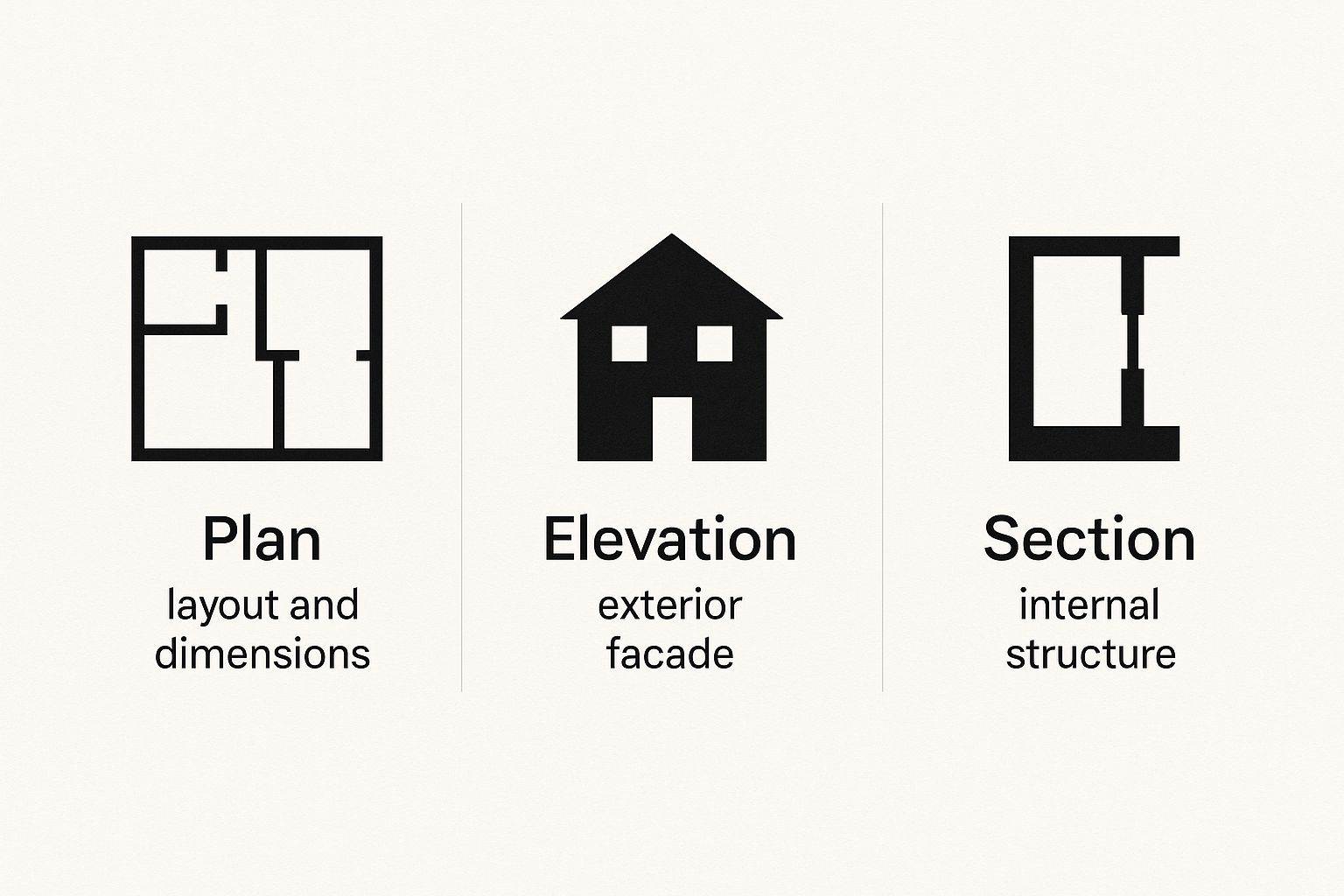

Infographic about architectural drawing basics

This isn’t just about making pretty pictures. Sticking to these fundamental drawing standards is proven to boost project efficiency by up to 40% simply by cutting down on guesswork and errors on the job site. It’s a system of communication that has been refined over centuries. If you're curious, you can learn more about its origins by reading about the history of architectural drawing.

Together, these three views transform a flat, 2D drawing into a comprehensive 3D guide. This clarity is the cornerstone of client trust and project success, a principle we uphold as a Native American-owned, 8(a), and HUBZone certified firm.

Of course, understanding the drawings is only half the battle; you also need to know where to find good ones. If you're at the start of a home project, exploring your options is crucial. For a little help, check out our guide on the 7 best sources for house plans in North Carolina.

How to Read Blueprints Like a Pro

Ever feel like you’re staring at a secret code when you look at a blueprint? You’re not alone. Think of it less like a mysterious document and more like a detailed instruction manual for a building. Instead of confusing jargon, it's a visual language of lines, symbols, and scales that tells the construction crew exactly what to build.

Learning to speak this language is the first step to making sure the building you imagined is the one that gets built. At SEGC, we make it a point to walk our clients through this from day one, so you're never in the dark.

A detailed architectural drawing being examined on a large wooden table, with drafting tools nearby.

It all starts with the "alphabet" of the drawing—the lines themselves. Every single line tells a story about what you can see, what’s tucked away behind a wall, and what’s absolutely critical.

The Language of Lines

Not all lines are created equal. An architect uses different line weights and styles to bring order to the chaos and communicate a ton of information at a glance. It's a clever system, really.

  • Thick Solid Lines: These are the big players. They outline the major structural elements you can see, like walls and columns. They're the bones of the building.
  • Thin Solid Lines: These guys fill in the details. Think window frames, built-in cabinets, or even the pattern of floor tiles. They add the personality.
  • Dashed or Hidden Lines: This is your x-ray vision. Dashed lines show you important things that are hidden from view, like a steel beam running through the ceiling or the foundation buried underground.
  • Center Lines: See a repeating pattern of a long dash then a short dash? That's marking the exact center of an object or an entire room. It’s all about precision.

Understanding Scale and Symbols

With the alphabet down, let's talk about scale. It’s simply the magic that shrinks a massive building down to a sheet of paper you can hold. You might see a note like 1/4" = 1'-0". All that means is that every quarter-inch you measure on the paper equals one full foot in the real world. Simple as that.

Then you have the symbols, which are scattered all over the drawing. These are architectural emojis—little icons for doors, windows, electrical outlets, and toilets. Once you learn to spot a few common ones, you’ll start reading the whole drawing with surprising speed.

For a community center we built in Lumberton, we walked stakeholders through these very basics. By understanding the lines and symbols, they could visualize the flow of the space and provide meaningful feedback long before we broke ground. This is client trust in action.

Making sure every line and symbol is read correctly is a huge part of our job. It feeds directly into our rigorous construction quality control checklist, which is our promise that the vision on paper becomes a rock-solid reality.

If you really want to see these plans come alive, looking into a rendered floor plan visualization can take your understanding to a whole new level.

The Evolution from Papyrus to Pixels

Architectural drawing has been around for, well, a very long time. We’re talking thousands of years. The core job has never changed: take a complex vision out of someone’s head and put it onto a medium so it can be built correctly. The tools have certainly changed—we’ve traded papyrus for pixels—but the principles are timeless.

It’s a wild ride when you think about it. The ancient Egyptians were scratching out plans on papyrus with reed pens way back in 2000 BCE. But it was the Roman architect Vitruvius who really set the stage around 15 BCE. His famous treatise, De Architectura, laid out the basic drawing types—plans and elevations—that are still the bread and butter of our work today. It’s a pretty amazing lineage, which you can explore in this rich timeline of architectural history.

Why does this ancient history matter? Because at SEGC, we see ourselves as part of that long tradition. Sure, we use the latest digital tools to achieve pinpoint accuracy on our projects in Fayetteville and Lumberton, but we never lose sight of the real goal: crystal-clear communication. This reverence for the fundamentals is a huge part of who we are as a Native American-owned and HUBZone-certified firm.

Understanding where we've come from helps us build better for the future. We honor the timeless need for precision while using modern technology to deliver the quality and trust our clients expect.

Our approach is a blend of old-school respect for the craft and new-school execution. With over 21 years of proven results, we know that it’s not just about knowing which buttons to click in the software. It’s about understanding why every line, every symbol, and every dimension is mission-critical for building legacies, not just structures. It’s how we ensure every project is built on a solid foundation of quality and trust.

Exploring Today's Digital Drafting Table

The days of T-squares, ink-stained fingers, and endless eraser shavings are long gone. Architecture has traded in the physical drafting table for a dynamic, pixel-powered workspace defined by two game-changing technologies: Computer-Aided Design (CAD) and Building Information Modeling (BIM).

A modern architectural design displayed on a computer screen, showing a 3D model of a building.

This isn't just about drawing faster; it's about building smarter. CAD software gives us razor-sharp accuracy, while BIM allows us to construct a building virtually before we ever break ground. Imagine walking through hallways, testing door clearances, and seeing how pipes and ductwork fit together before a single nail is hammered. This digital-first mindset is a core part of how we’ve maintained our 21+ year track record of excellence.

The Power of CAD and BIM

The digital revolution started creeping into design studios in the mid-20th century, but it truly exploded when Autodesk unleashed AutoCAD in 1982. Suddenly, this incredible power was available on personal computers. The shift was seismic. Drafting accuracy went through the roof, human error plummeted, and architects could bring to life designs that were previously unthinkable.

Today, these tools are the central nervous system of any modern construction project.

  • CAD (Computer-Aided Design): Think of this as the ultimate drafting board. It’s where we create hyper-accurate 2D and 3D drawings with perfect lines, flawless geometry, and the magic of an undo button.
  • BIM (Building Information Modeling): This is where things get really interesting. BIM goes beyond simple drawings to create an intelligent 3D model. Every wall, window, and pipe is an object loaded with information—from its material and cost to its manufacturer. It’s a living, data-rich blueprint.

At SEGC, using these tools isn't just a preference; it’s fundamental to our process. It’s how we spot and solve problems for our clients in Fayetteville and Lumberton on the screen, not on the job site, saving them from expensive, time-consuming mistakes.

All this digital information creates a mountain of data, and managing it is crucial. Our deep experience with construction document management systems keeps every file and revision organized and accessible. And to bring these digital models to life for clients, we rely on powerful architectural rendering software that turns a blueprint into a stunningly realistic vision.

Building Legacies, Not Just Structures

When you get right down to it, architectural drawings are about so much more than lines on paper. They’re the first real, tangible step toward creating a lasting legacy for a community. Think of them as a promise of quality, a detailed roadmap for how a space will function, and the very foundation of a shared vision. These blueprints ensure that every single detail, from the first sketch to the last coat of paint, perfectly aligns with what our clients dream of.

This absolute commitment to clarity and precision is what we’re all about. It’s the driving force behind our 21+ years of proven results in shaping communities across Fayetteville and Lumberton. We’ve always believed that an empowered client is a confident partner, and for us, masterfully crafted drawings are the number one tool for building that trust. It’s a philosophy that has guided our work as a Native American-owned, 8(a), and HUBZone certified firm since day one.

A client from one of our recent Fayetteville projects told us, “Your clear plans gave us complete confidence from day one.” That is the standard we strive for on every single project, big or small.

That kind of trust isn't something that just happens. It’s forged through open and honest communication, a relentless focus on the small details, and a genuine passion for seeing our partners succeed. We get it—we aren’t just putting up walls. We’re creating the spaces where families will grow, businesses will flourish, and communities will come together for generations.

If you’re ready to partner with a firm that sees the bigger picture, we’d love to talk. Let’s explore how we can turn your vision into a durable, meaningful legacy. Contact SEGC today to get the conversation started and see what we can build, together. We’re here to build more than a structure; we’re here to build your future.

A Few Common Questions We Get

When you're diving into the world of architectural drawings, it's natural to have a few questions pop up. We hear them all the time from our partners in Fayetteville, Lumberton, and across the region, so let's clear up some of the most common ones.

Aren't Architectural Drawings and Blueprints the Same Thing?

Not anymore, though people often use the terms interchangeably. Back in the day, a blueprint was quite literally a print with white lines on a blue background—an old-school photo-reproduction method.

Today, what we work with are highly detailed digital files, properly called architectural drawings or construction documents. Think of it like the difference between a hand-drawn map and a high-res GPS system; both get you there, but one is infinitely more precise.

Why on Earth Are There So Many Pages?

A thick stack of drawings can look pretty intimidating, but there’s a simple reason for it: clarity. Imagine trying to cram all the information for plumbing, electrical, and structural framing onto a single floor plan. It would be an absolute mess!

Instead, the set is organized by discipline, giving each trade its own dedicated space. You'll see letter codes that tell you what you're looking at:

  • A-Series: The "A" is for Architectural—this is where you find the floor plans and exterior views.
  • S-Series: "S" stands for Structural, detailing the building's skeleton, like the foundation and framing.
  • M-Series: Mechanical drawings show your HVAC systems.
  • P-Series: This one's easy—it's for Plumbing.
  • E-Series: And of course, "E" is for Electrical.

This system keeps everyone on the same page (pun intended) and ensures the electrician isn't trying to decipher the plumber's notes.

What if I Want to Change Something After the Drawings Are Done?

You absolutely can, but when you make the change matters. A lot.

Making tweaks during the design phase? No problem. That’s what it’s for! But once construction has kicked off, any adjustment becomes a formal “change order.” This isn't just a quick edit; it's a process that can add both time and money to your project. The best plan is always to get things dialed in before the first shovel hits the dirt.


At South Eastern General Contractors, our goal is simple: build legacies through crystal-clear communication and top-notch quality. If you’re looking for a partner who values trust and transparency as much as you do, we'd love to talk. Let's connect and start bringing your vision to life.
