So, you’ve just unrolled a massive set of construction blueprints, and it looks like a foreign language filled with bizarre symbols and cryptic notes. Don’t panic. Every seasoned pro was once in your shoes, and learning to read these documents is a skill, not a secret art. The trick is knowing where to look first.

Before you even think about walls or windows, your journey begins with the cover sheet and its most important feature: the title block. Think of this as the project's command center—it’s where you’ll find all the mission-critical information at a glance.

Your First Look: Mastering the Cover Sheet and Title Block

Think of the blueprint’s cover sheet as the "You Are Here" map for the entire project. It's the table of contents, giving you the grand tour before you dive into the nitty-gritty of floor plans or electrical layouts. This page introduces the project and gives you a drawing index, so you can flip straight to sheet E-101 for lighting details without hunting through dozens of pages.

Here at South Eastern General Contractors (SEGC), we treat this first step with the seriousness it deserves. With over 21+ years of proven results building across communities from Fayetteville to Lumberton, we’ve learned that a project’s success is often decided in these initial moments. A thorough review of the cover sheet and title block sets the stage for everything that follows.

Why the Title Block is Your Best Friend

Tucked away, usually in the bottom right-hand corner of every single page, is the title block. It’s the project’s DNA, its ID card. This little box contains the non-negotiable details that every single person on the job site—from the PM down to the newest apprentice—needs to know.

Get familiar with this space. It’s where you’ll find:

• Who, What, Where: The official project name and its physical address.
• The Brains of the Operation: Contact info for the architects and engineers.
• Sheet-Specifics: The title and number of that specific drawing (e.g., "A-1, First Floor Plan").
• The All-Important Revision History: A log of changes. Always check this to make sure you're not building off an old plan!
• Scale: The magic ratio that shrinks a whole building onto a piece of paper (like 1/4" = 1'-0").

Mastering this isn't just a "nice-to-have" skill. The U.S. construction industry is a behemoth, valued at around $2.1 trillion, and it runs on the ability of millions of professionals to accurately interpret these documents. This is how we ensure everything from a custom home to a federal building is built safely and exactly as designed. You can find excellent resources on the importance of this skill from leading industry educators like the National Center for Construction Education and Research.

The Title Block: Your Project’s DNA

Every piece of information in the title block serves a critical purpose. Ignoring it is like trying to build a house without knowing the address. Here’s a quick breakdown of what to look for and why it matters.

Anatomy of a Blueprint Title Block

Getting this right from the start separates the pros from the rookies. A few minutes spent studying the title block can save you days of rework down the road.

A Story from the Field

Let me tell you, this isn't just textbook theory. On a recent job near Fayetteville, our project manager’s habit of scrutinizing the title block saved our client a small fortune. He noticed the revision date on the cover sheet didn’t match the date on the structural plans buried deep in the set.

One quick call to the architect confirmed it: a newer structural drawing had been issued, but it never made it into our copy.

This simple check, done before a single shovel hit the dirt, prevented us from ordering the wrong size steel beams. That’s a mistake that could have cost tens of thousands of dollars and weeks of delays.

That’s the kind of diligence that defines our work. As a Native American-owned, 8(a), and HUBZone-certified firm, our reputation is everything. We aren’t just putting up buildings; we're building a legacy of trust and quality, one meticulously checked blueprint at a time. So, take it from us: spend a few extra minutes with the title block. It's the first—and most important—step to reading blueprints like a pro.

Learning to Speak "Blueprint"

Alright, you’ve got your bearings with the title block. Now for the fun part: learning the actual language of the drawing. Think of it as cracking a code. Every line, every squiggle, every little icon is a standardized "letter" in the construction alphabet. String them all together, and they tell you the complete story of the building.

When you first lay eyes on a blueprint, it can feel like staring at a chaotic mess of lines. You'll see thick ones, skinny ones, dashed ones, and wavy ones all crisscrossing each other. But I promise, there’s a method to the madness. Each one has a specific job.

For example, a bold, solid line is usually an object line—it's showing you a visible edge, like a wall you could walk up and touch. A hidden line, which looks like a series of dashes, is sneakier. It represents something that's there but out of sight, like a steel beam tucked away above the ceiling. This universal language is what allows a designer in Dallas to communicate flawlessly with a crew on a job site in Denver. Mastering this "alphabet" is non-negotiable if you want to build anything correctly.

The Alphabet of Lines

To really get what a blueprint is saying, you have to know your lines. It’s a foundational skill, and getting it wrong is how simple misunderstandings turn into expensive, tear-it-out-and-start-over mistakes.

Here are the essential lines you’ll see on virtually every set of plans:

• Object Lines: These are the big kahunas—the dark, solid lines that form the main skeleton of the drawing. They outline walls, floors, and other major features.
• Hidden Lines: Dashed lines that clue you into things you can't see from the current viewpoint. On a floor plan, for instance, a hidden line might show a decorative archway above or a drop in the ceiling.
• Center Lines: A distinctive long-dash-short-dash pattern. These are your guides for perfect placement, marking the dead center of things like columns, windows, or even a kitchen sink.
• Dimension Lines: These are the thin, solid lines with little arrows or tick marks on the ends. They’re always paired with a number to tell you the precise size of something.
• Leader Lines: Think of these as little pointers. They're fine lines that shoot out from a note or a dimension to the exact spot on the drawing they’re talking about, keeping things clear even in crowded areas.

Over our 21 years in the business, we’ve learned that our team's precision in reading these lines is directly tied to the client trust we've earned at SEGC. It's how we back up our promise of quality.

Unlocking the Secret Code of Symbols

Beyond the lines, blueprints are packed with hundreds of standardized symbols. These are the icons—the shorthand for everything from a double-hung window to a GFCI outlet. Most drawing sets include a legend that defines every symbol used, but memorizing the common ones will make you infinitely faster and more effective.

You’ll see these on almost every architectural plan:

• Doors: A straight line attached to the wall with a sweeping arc. That arc is critical—it shows you which way the door swings and how much clearance it needs.
• Windows: Usually shown as a break in a wall, with a few thin lines inside to represent the frame and glass.
• Electrical Outlets: A simple circle with two little lines poking out.
• Light Switches: Look for an "S." Sometimes you'll see S2 or S3, which just means you have multiple switches in that one spot.
• Toilets: You can't miss it—it's the classic top-down view of an oval bowl with a rectangle for the tank.

But these symbols are more than just pictures; they’re loaded with critical information. We saw this firsthand on a recent community center project right here in Fayetteville.

The plans had a specific accessibility symbol next to several doors. A rookie might glance at it and just think "wheelchair accessible," but our project manager knew better. He recognized it as the specific symbol for an automated door opener. That wasn't just about checking a box for the code; it was about delivering on the project's core mission of true inclusivity.

That one tiny symbol changed everything. It meant we needed to plan for specific electrical rough-ins and extra structural support in the wall. Catching that detail early saved a ton of time and money that would've been wasted on rework.

As a Native American-owned firm, building for our community means sweating every single detail to ensure the final building serves everyone. It’s a perfect example of how we don't just put up walls; we're committed to building legacies that honor our clients' deepest values.

Cracking the Code of Blueprint Scale and Dimensions

Here’s the magic of a good set of blueprints: they shrink a massive, real-world structure down to something you can hold in your hands. The secret ingredient that makes this all possible? Scale.

Scale is what lets you look at a line on a page and know it’s a 40-foot load-bearing wall, not just a squiggle. It’s a fixed ratio. On most residential and commercial plans, you’ll see something like 1/4" = 1'-0". All this means is that for every quarter-inch you measure on the paper, it represents one full foot in reality.

To do this right, you need an architect's or engineer's scale—those triangular rulers packed with different ratios. Getting the hang of one is a rite of passage. You find the matching scale, line it up, and pull your measurement. It’s an essential skill for anyone serious about reading construction drawings.

The Two Golden Rules of Dimensions

While scaling drawings is fundamental, we live by two non-negotiable rules on our job sites at South Eastern General Contractors. These aren't just suggestions; they are core principles we've built our reputation on for over 21 years, delivering proven results.

• Rule #1: The Written Dimension is Gospel. Always, always trust the dimension printed on the plans over any measurement you take with your scale. Why? Because that number is the architect’s final word. A drawing might have tiny printing distortions, or you might just be off by a hair. The written number is the law.
• Rule #2: Never, Ever Assume. If a dimension isn’t there, you don't guess. You don't try to calculate it based on other numbers. You stop and ask. That's exactly what a Request for Information (RFI) is for. A simple question can prevent a catastrophic—and expensive—mistake.

This isn’t just a local practice; it's a global standard. Take a look at the complex architecture popping up worldwide, like Malaysia's Arte S residential complex, which stands 180 meters tall. Achieving its wild, twisting balconies and column-free interiors is impossible without absolute, meticulous adherence to the dimensions on the blueprints.

A Lesson in Precision Straight from the Field

Following these rules isn't just about ticking boxes. It’s about protecting the project, the budget, and the client's faith in us. I’m reminded of a tricky HUBZone project we handled a few years back.

Our framing crew was working from a detailed drawing when they spotted a tiny mismatch. The written dimension for a set of window openings didn't quite line up with what their scales were showing—the difference was less than an inch. A rookie crew might have split the difference or just trusted their ruler.

But our guys knew better.

The foreman immediately put the brakes on and shot off an RFI. The architect got back to us and confirmed they'd made a late structural change for a different window model. They updated the written dimension but forgot to adjust the drawing itself. By trusting the text, our team dodged a framing disaster that would have caused huge delays and cost thousands to fix.

This is the kind of obsessive attention to detail that defines our culture. It’s a crucial lesson we cover in our guide to the custom home building process. As an 8(a) certified, Native American-owned firm, we build legacies, not just buildings, in the Fayetteville and Lumberton communities we are so proud to serve. That starts with getting every last detail right.

Navigating the Different Types of Plan Views

A full set of construction blueprints isn't just one drawing. It’s a whole collection of views, each with a specific job. Trying to build off just one sheet is like trying to put together a puzzle with half the pieces missing. You have to learn how to flip between them to get the complete picture.

The four main players you’ll be dealing with are floor plans, elevations, sections, and detail drawings. Each one gives you a different angle on the project. Floor plans show the layout, elevations handle the exterior look, sections slice the building open to show how it's built, and details zoom in on the really tricky connections.

The Bird's-Eye View: Floor Plans

The floor plan is the undisputed workhorse of any set of prints. You'll probably have this sheet open more than any other. It's your top-down view, as if someone lifted the roof right off, showing you how every room is laid out and how people will move through the space.

This is where you find the answers to all the basic layout questions:

• How big is this room?
• Where are the doors and windows?
• Which way do the doors swing open?
• Where do the stairs, closets, and cabinets go?

Think of the floor plan as your road map. It’s the foundation that all the other drawings tie back to.

Exterior Perspectives: Elevations

While the floor plan gives you the inside scoop, an elevation shows you what the building is supposed to look like from the outside. You’ll usually get four of these—one for each face of the building (north, south, east, and west).

Elevations are all about the building's curb appeal and vertical scale. They tell you:

• What the exterior finish materials are—brick, siding, stone, you name it.
• The style and placement of every window and door.
• The roof lines, their pitches, and any overhangs.
• Critical height measurements, like the distance from the ground to the peak of the roof.

Without elevations, you'd be guessing what the finished building should look like from the street.

Seeing Inside: Sections and Details

Now we’re getting to the good stuff. If a floor plan is a map and an elevation is a photo, a section view is like a CT scan. It’s a drawing that shows what you’d see if you sliced the building in half, revealing all the hidden guts of the construction.

This is where we at South Eastern General Contractors can tell the rookies from the pros. A section cut shows you how something is actually put together. It reveals the foundation footings, the layers in the wall assembly, floor-to-ceiling heights, and the roof structure. It’s the view that guarantees quality and structural integrity.

When things get really complex, architects provide detail drawings. These are super-magnified views of specific connection points, like how a window is flashed to keep water out or how a custom railing attaches to the wall. They’re the nitty-gritty instructions for the most critical assemblies.

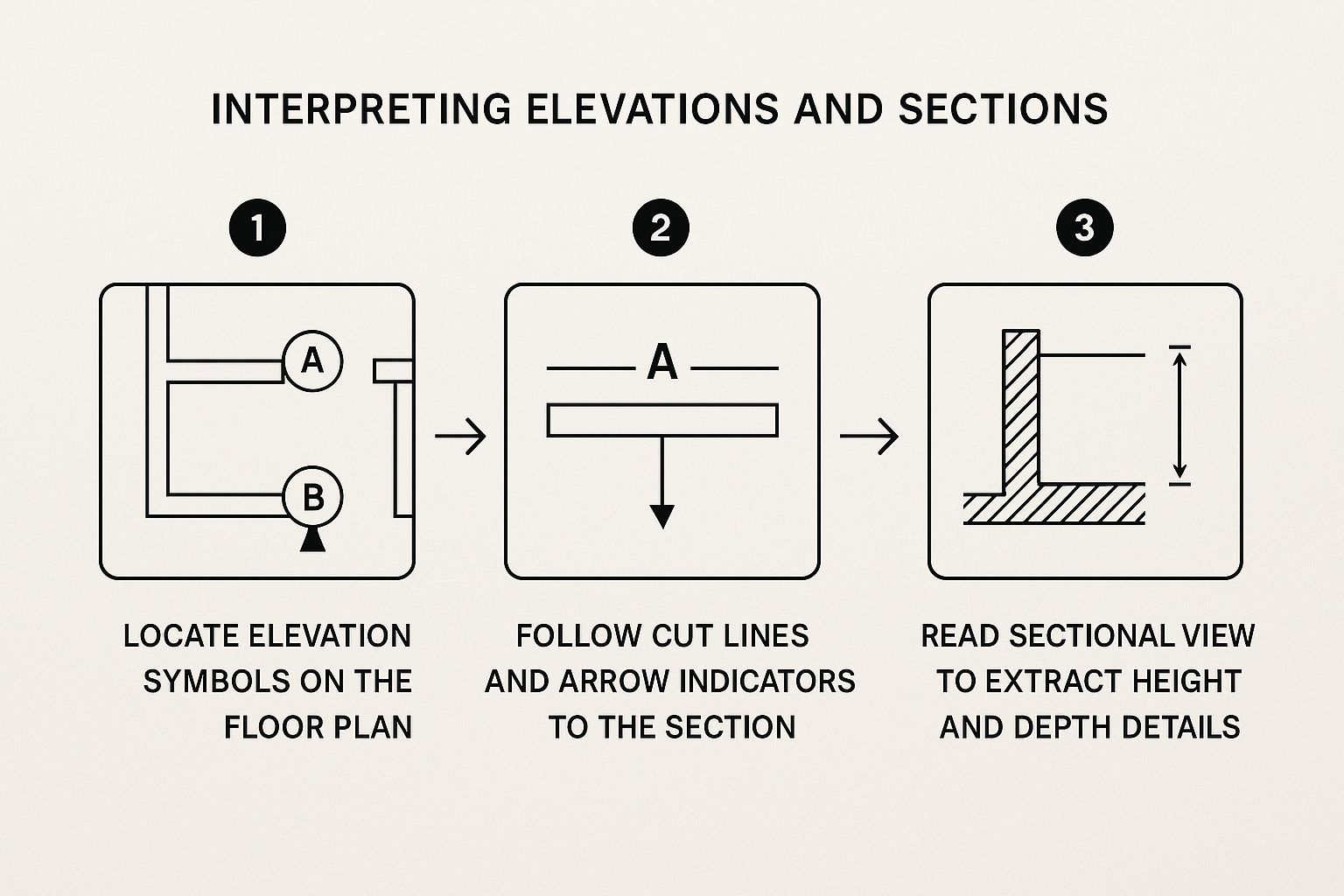

This diagram shows how you use the different views together to find what you need.

As you can see, you start broad with the floor plan to find the reference markers that point you to the more specific information in the elevation and section views.

From the Field: We had an infrastructure project near Lumberton where our team had to install some bulky HVAC equipment in a ridiculously tight space. The floor plan showed us where it went, but the vertical clearance was a mystery. We found the section cut symbol on the floor plan, tracked down that specific section view on another sheet, and discovered a hidden structural beam that would have completely blocked the install.

This is the kind of practical expertise that has made us a local leader for over 21 years. As a Native American-owned, 8(a), and HUBZone-certified firm, our name is on the line with every project. Catching that conflict on paper—not after the equipment was already on-site—saved our client a ton of time and money. It’s what builds the trust we’ve earned in the Fayetteville community and how we ensure we’re building legacies, not just structures.

Don't Forget the Fine Print: Connecting Drawings to Specs and Notes

Think of drawings as the "what" and "where"—they show you the wall and its location. But the specs and notes? That’s the "how" and "with what." This is where the real guts of the project are defined, telling you everything from the exact brand of paint to the R-value of the insulation.

Honestly, skipping over the specs is one of the quickest ways to blow a budget and a deadline. It's a classic rookie mistake. The true art of reading blueprints isn't just about understanding the lines on the page; it's about seamlessly connecting that visual information to the written instructions that give it meaning.

General Notes vs. Keynotes: Know the Difference

You’ll find notes peppered all over the drawings, but they fall into two main camps. Knowing which is which is critical.

• General Notes: These are the big-picture rules. You'll typically find them on the cover sheet or the first few pages, and they apply to the entire job unless a specific note says otherwise. Think of them as the project's constitution, covering things like safety protocols, overall material standards, and default construction methods.

• Keynotes (or Specific Notes): These are your precision strikes. You'll see a symbol or number on the drawing pointing directly at an object—like a window or a beam. You then match that symbol to a legend on the same sheet, which gives you a very specific command, like "Install 2-inch rigid insulation."

This system keeps the drawings from becoming a cluttered mess while still packing in all the necessary details. Being able to quickly cross-reference a keynote is a skill that separates the pros from the apprentices. It’s this attention to detail that builds a contractor's reputation. When you’re vetting builders, knowing how to find a good contractor often comes down to finding one who lives and breathes this level of detail.

The Spec Book: Your Project Bible

On bigger jobs, you’ll get a separate, often phone-book-thick document called the specification book, or "spec book" for short. This is the ultimate law of the land for every material and installation method on the project. It’s usually organized using CSI (Construction Specifications Institute) divisions, with a chapter for everything from concrete (Division 03) to electrical (Division 26).

The spec book is where client trust is truly built or broken. The drawings show the shape, but the specs define the quality, performance, and longevity. One missed sentence in a 300-page book can mean ordering the wrong steel, failing an inspection, and eating the cost of rework.

Our 21+ years of proven results at SEGC have been built on treating the spec book with the respect it commands. This is especially true as we help build thriving communities across North Carolina.

You can see the real-world value of this skill in booming cities. In places like Dallas and Austin, where populations have skyrocketed by over 6% and 8%, the need for sharp construction professionals is intense. A construction manager who can expertly navigate a plan set and spec book can easily earn over $100,000 a year. This expertise isn't just a line on a resume; it's the engine building our country's future. You can see more on how urban growth fuels demand for these skills and its economic impact.

How a Meticulous Spec Review Builds a Legacy

This isn't just talk. A few years back, we were working on a municipal building in Lumberton. During our standard review process, our project manager was digging through the spec book while looking at the exterior cladding plans. The drawings called out a standard, perfectly fine material. Most would have just ordered it and moved on.

But he kept reading. Deep in the performance requirements section of the specs, he found a clause about long-term weather durability and the client's low-maintenance expectations. He immediately knew of an alternative composite panel. While it cost a bit more upfront, it came with a 20-year warranty and would drastically cut the building's long-term maintenance costs.

We took this to the client not as a change order, but as a value-add. They were blown away. That simple act of reading deeper saved them a fortune over the life of the building and solidified their trust in us.

That’s the SEGC difference. As a Native American-owned, 8(a), and HUBZone-certified firm, we’re not just builders; we’re partners. We’re committed to delivering lasting value for our clients in Fayetteville, Lumberton, and across the region. That’s how you build a legacy, not just a building.

Common Blueprint Questions Answered

Even after you think you've got a handle on the symbols and scales, questions are going to pop up on the job. Honestly, that's a good thing—it means you're paying attention and thinking critically. With over 21+ years of proven results, our team at South Eastern General Contractors has fielded just about every question you can imagine.

We've pulled together some of the most common ones we hear on our job sites in Fayetteville and Lumberton. These are the practical, real-world puzzles that can trip up even seasoned pros. Our answers come straight from our expert, humble approach to empowering every partner and client we team up with.

What's the Difference Between Architectural and Structural Drawings?

This is a classic. Think of it this way: architectural drawings show you what the building is supposed to look and feel like, while structural drawings show you how it stands up. They’re a team, but they play very different positions.

• Architectural Plans (The "A-Series"): These are the glamour shots. They’re all about aesthetics, flow, and function. You'll find floor plans, exterior elevations, room dimensions, door and window styles, and what materials to use for the finishes. They show you where the kitchen goes and what the facade will look like.

• Structural Plans (The "S-Series"): This is the building's skeleton. These plans get into the nitty-gritty of the load-bearing components—foundations, beams, columns, and trusses. They tell you exactly how beefy the concrete footings need to be and what size steel beam you need to hold up the second floor without it sagging.

You absolutely can't build from one without the other. You need both to make sure the final building is not just beautiful but also safe and sound.

How Are Revisions to Blueprints Shown?

Okay, pay close attention here. This is one of the most critical things to understand on a job site. Working from an outdated set of plans is a one-way ticket to a costly, frustrating disaster. Revisions are almost always flagged in two key places.

First, your eyes should scan for a revision cloud. It’s a bubbly, cloud-shaped line drawn right around the part of the plan that has been changed. Inside or near this cloud, you’ll usually find a little triangle or diamond with a number in it.

That number is your clue. It points you to the revision history block, which is always in the title block. This is a log that lists every change by date, detailing exactly what was updated, like "Revised window dimensions" or "Added support column."

Our SEGC Field Rule: Before you start any task, make two checks. First, glance at the title block for the latest revision date. Second, scan the page for revision clouds. This 30-second habit has saved us from countless expensive mistakes.

Can I Use a Regular Ruler Instead of an Architect's Scale?

You could… but please, for the love of all things construction, don't. Using a regular ruler is just asking for a calculation error. You'd have to constantly do math in your head ("Let's see, if the scale is 1/4" = 1'-0", and this line is 3 and 5/8 inches long…"). The risk of one tiny math mistake is huge.

An architect's scale is designed to prevent this. You just find the edge that matches the drawing's scale, lay it down, and it tells you the real-world measurement in feet and inches. No mental gymnastics required. It's built to remove that layer of human error.

But here’s the real golden rule: Always trust the written dimension over any measurement you take yourself, even with the proper scale. That printed number on the plan is the final word, period. Building a solid relationship with your builder is how you navigate these details smoothly. Knowing the right questions to ask your general contractor ensures everyone is on the same page.

This commitment to clarity and precision is a hallmark of our Native American-owned, 8(a), and HUBZone-certified firm. It’s how we deliver quality and build the client trust that our entire reputation is built on.

At South Eastern General Contractors, we believe an informed client is an empowered partner. We're not just putting up buildings; we're building legacies founded on transparency, quality, and trust. If you’re ready to start a project with a team that values your vision and sweats every single detail, let’s talk.
